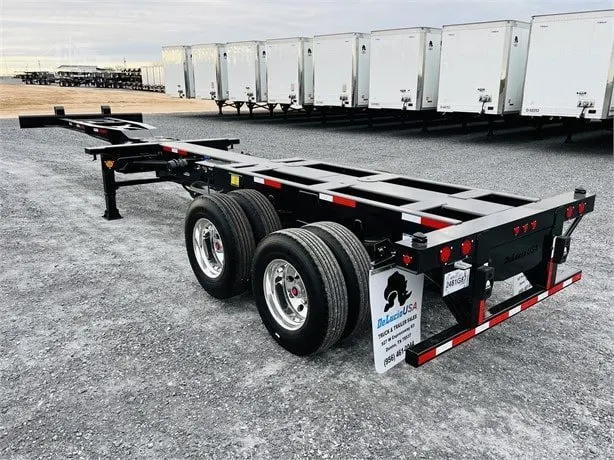

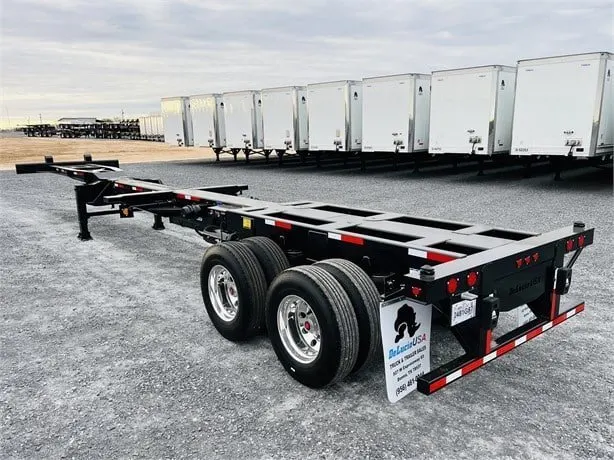

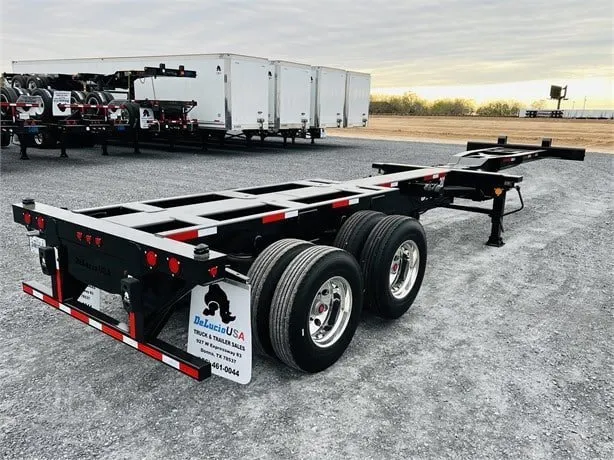

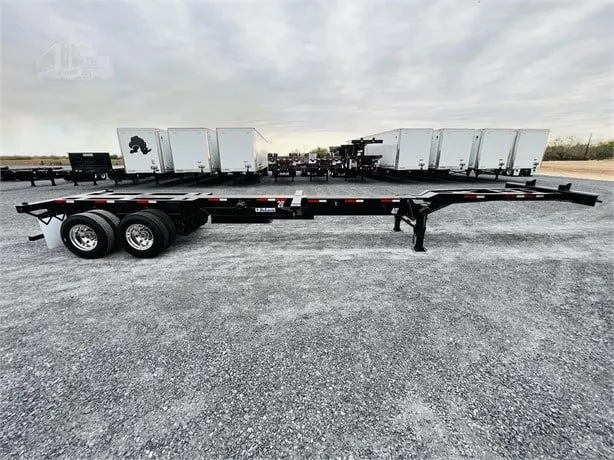

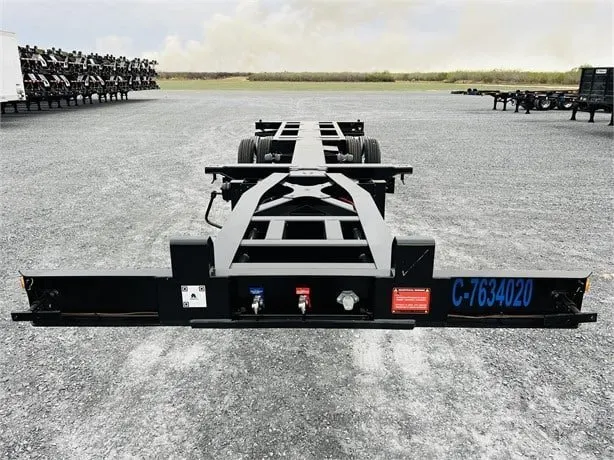

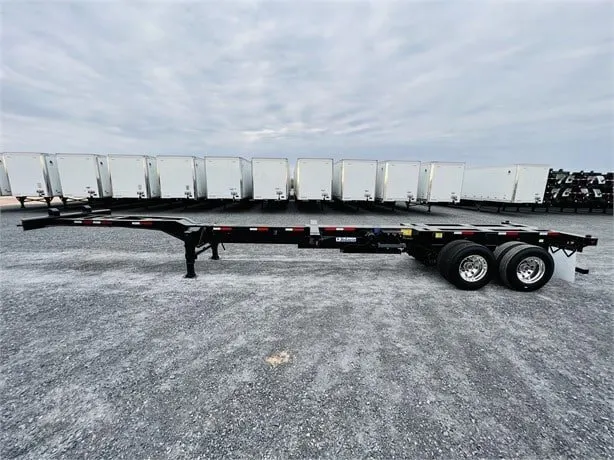

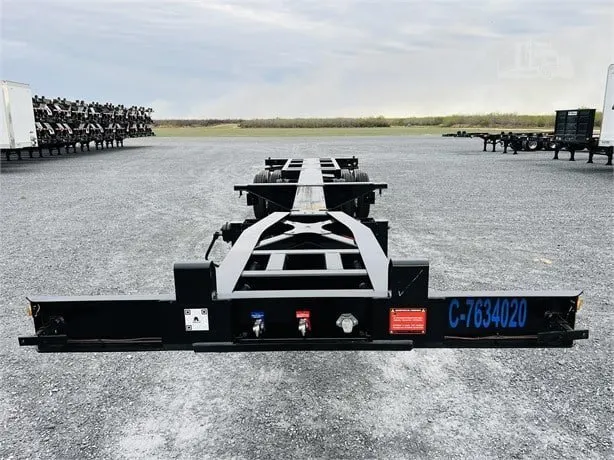

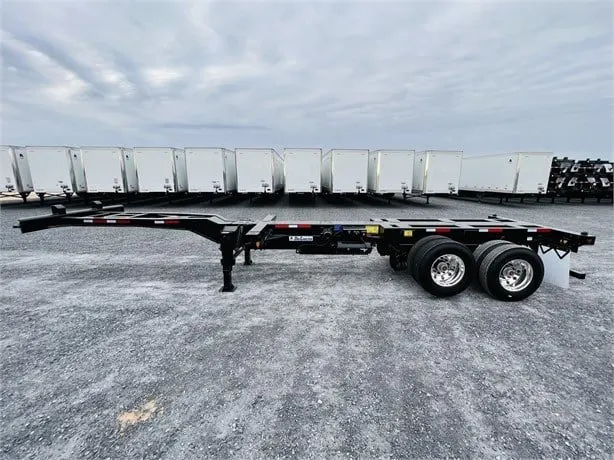

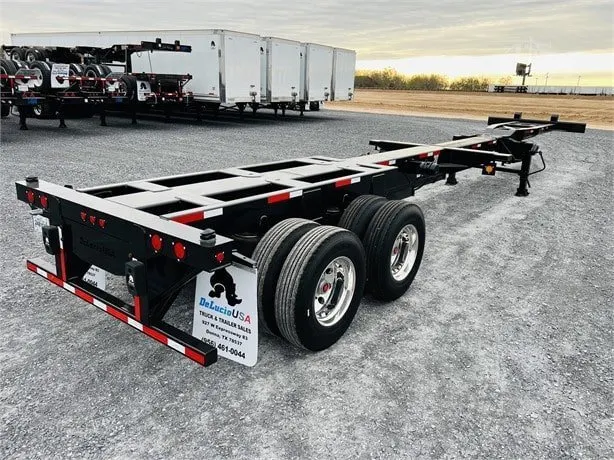

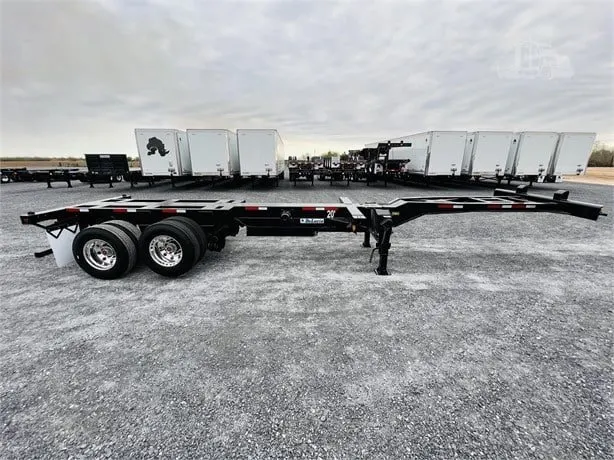

2024 DE LUCIO USA 40/20 EXTENDABLE CHASSIS

Intermodal / Container (Chassis Only)

• INTERMODAL / CONTAINER (CHASSIS ONLY) SEMI-TRAILERS >
• DE LUCIO USA >
• 40/20 EXTENDABLE CHASSIS

Buy 2024 De Lucio USA 40/20 Extendable Chassis Online Buy 2024 De Lucio USA 40-20 Extendable Chassis Online

General

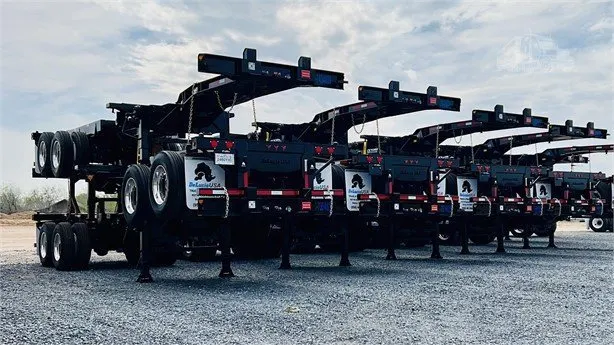

Quantity – 75 Year – 2024 Manufacturer – DE LUCIO USA Condition – New Stock Number – CT4020 BRAND NEW EXTENDABLE 40/20 CHASSIS TRAILER 75 Units Available in stock!!! and more coming in every month!! – Unique design with a single rail frame! – Tridem FIXED Airbag suspension – One fixed axle and two auxiliary drop axles – New 11R22.5 Tires – Aluminum wheels – ABS System – Heavy duty pin lock and twist Locks – Easy one step locks and manual lock for extension – Haul one 40ft Container loaded or one 20ft container loaded WE ARE THE MAIN SUPPLIES , ORDER AS MANY AS YOU NEED‼️ * 1 Year Warranty Included * Buy 2024 De Lucio USA 40′-20′ Extendable Chassis Online Buy 2024 De Lucio USA 40ft – 20ft Extendable Chassis Online

Category Specific

Composition – Steel

Chassis

Suspension – Air Ride Tires – 11R22.5 Wheels – Aluminum Outside Number of Rear Axles – Tri Axle Type – Fixed

Weights & Dimensions

Length – 33 ft Width – 102 in Buy DE LUCIO USA 40/20 EXTENDABLE Intermodal Container CHASSIS Online Buy DE LUCIO USA 40-20 EXTENDABLE Intermodal Container CHASSIS Online – Unique design with a single rail frame! – One fixed axle – One Auxiliary drop axle**** ••• Option for triaxle (extra price) – New 11R22.5 Tires – Aluminum wheels – Airbag suspension – ABS Sytem – Heavy duty pin lock and twist Locks – Easy one step locks and manual lock for extension – Haul one 40ft Container loaded or one 20ft container loaded Buy DE LUCIO USA 40′-20′ EXTENDABLE Intermodal Container CHASSIS Online Buy DE LUCIO USA 40ft – 20ft EXTENDABLE Intermodal Container CHASSIS Online

20-40 Foot Tri-Axle Chassis

The triaxle version of the city chassis; same telescopic frame with a little more beef. Closed position for loading/unloading and road transport of 20ft container. The 40 ft container is handled with chassis in the extended position. Overall lengths are: 29 foot 7 inches and 40 foot 6 inches respectively. Sliding movement via telescopic action of main frame behind landing gear and locking pins ensure positive engagement.

Buy DE LUCIO USA 40′-20′ EXTENDABLE Intermodal CHASSIS Online Buy DE LUCIO USA 40ft – 20ft EXTENDABLE Intermodal CHASSIS Online

Chassis is designed and built according to Association of American Railroads (AAR), Federal Motor Vehicle Safety Standards (FMVSS), International Standards Organization (ISO), American National Standards Institute (ANSI), Department of Transportation (DOT), American Bureau of Shipping (ABS), Society of Automotive Engineers (SAE), and Truck Trailer Manufacturers Association (TTMA) standards.

Buy DE LUCIO USA 40/20 EXTENDABLE Intermodal CHASSIS Online Buy DE LUCIO USA 40-20 EXTENDABLE Intermodal CHASSIS Online

The container chassis frame and main fabricated parts are made from high strength steel. Some of the standard components include 10×20 tires on 5 spoke wheels, spring suspension, antilock braking system (ABS), and two-speed landing legs. Several options to choose from.

DE LUCIO USA 40′-20′ EXTENDABLE Intermodal CHASSIS For Sale DE LUCIO USA 40ft – 20ft EXTENDABLE Intermodal CHASSIS For Sale

20-40 Foot Triaxle City Chassis Specifications
Overall Length:	29’-7” Retracted; 40’-6” Extended
Overall Width:	96”
King Pin Location:	24” from rear face of front bolster
Coupler Height:	48”
Tare Weight:	9,450 lbs
Main Rails:	Two hot rolled structural steel, ASTM-A572 Grade 50 “I” beams. Wide flange 12” in depth 19 lbs/ft
Landing Gear:	Two-speed mechanism and square leg tubing with 10” x 10” low profile sand shoes
Suspension:	Hutch with Three Leaf Springs (11,000 lb capacity each)
Axles:	Three axles of 5” round and 22,500 lb beam capacity each; 16.5 x 7-inch Q brakes; automatic type slack adjusters
Brake System:	Meritor Wabco 2S/1M Anti-lock Braking System; 30/30 Spring brake chambers
Tires / Wheels	10.00 x 20 tires on 5 spoke wheels
Electrical:	12 Volt with plug type connectors, 7-way plug, sealed wire harnesses and lights
Twist Locks:	Cast steel to engage ISO corner castings
Paint:	Commercial sandblast, primer, and high quality paint system
Other:	Conspicuity Tape, Bumper, 24 x 30 Mud Flaps

20′-40′ 2-AXLE CHASSIS

Carries one 20′ or 40′ ISO container. Applicable to operation in Canada.

DE LUCIO USA 40/20 EXTENDABLE Intermodal CHASSIS For Sale DE LUCIO USA 40-20 EXTENDABLE Intermodal CHASSIS For Sale

The 20-40 Chassis is a lighter version of our Heavy Duty series. This combo trailer chassis weighs only 7,500 lbs and can achieve a GVWR of 57,600 when loaded with a 20’ container or 75,000 lbs when loaded with a 40’ intermodal container. It utilizes a telescopic system with air actuated locking pins to extend to its full length to allow it to carry the 40’ container. It is applicable to operation in Canada.

DE LUCIO USA 40′-20′ EXTENDABLE Intermodal Container CHASSIS For Sale DE LUCIO USA 40ft – 20ft EXTENDABLE Intermodal Container CHASSIS For Sale

GENERAL SPECS

Tare Weight: Approximately 7,500 lb. GVWR: Closed position: 57,600 lb.; Extended position: 75,000 lb. Steel & Fasteners: All structural steel is ASTM-A572, Grade 50, or ASTM-A607, Grade 50 or better. All structural fasteners are Grade 5 or better and are zinc coated Bogie Beams: Fabricated I-Beam with high-tensile steel Cross Member: Fabricated steel Fifth Wheel Height: 48 inches Front Bolster: Fabricated with twist-locks, steel casting end plates Rear Bolster: Channel type Intermediate Bolsters: Fabricated with retractable twist-locks ICC Bumper: Tube: 47″ long Mud Flaps: 24″ × 30″ white plastic with 4 hole mounting Electrical System: 12 volt, 7-way split pin receptacle plug; modular wiring harness Slider Mechanism: Air-operated locking pins Overall Length Closed: 29.6 feet Overall Length Extended: 40.5 feet Gooseneck Beams: Fabricated I-Beam with high-tensile steel

DIMENSIONS

Overall Chassis Width: 102 inches Maximum Rear Height: 48 inches

LANDING GEAR

Landing Gear: Two speed AAR approved, square leg. 55,000-lb. lift capacity and 160,000-lb. static load capacity. Landing Gear Foot Group: 10″ × 10″ low profile sandshoe Crank Handle Location: Roadside

LIGHTING

Light Attachment: Flange mounted Light Type: LED

BRAKES

Drum: Steel outboard mounted Lubrication: Oil 90 W Brake System Type: 2S1M Brake Chambers: 30/30

WHEELS

Rims: Steel 22.5″ × 8.25″ hub piloted Tire Size: 11R 22.5 Hub Type: Steel

AXLES

Axle Type: 5″ round, tapered, 77.5″ long Axle Quantity: Two Tandem Location: 61.5″ from rear Kingpin Location: 24 inches from rear face of front bolster

SUSPENSION

Suspension Type: Three-leaf spring ride

FINISH

Metal Preparation: Clean, dry steel and NACE No. 3 /SSPC-SP-6 commercial blast cleaning Primer: Zinc-rich primer Topcoat: Black urethane DE LUCIO USA 40/20 EXTENDABLE Intermodal Container CHASSIS For Sale DE LUCIO USA 40-20 EXTENDABLE Intermodal Container CHASSIS For Sale

2024 DE LUCIO USA, 40/20 EXTENDABLE CHASSIS Semi-Trailers – Intermodal / Container (Chassis Only), BRAND NEW TRI-AXLE EXTENDABLE 40/20 CHASSIS TRAILER 200 Units Available in stock!!! and more coming in every month!! – Unique design with a single rail frame! – Tridem FIXED Airbag suspension – One fixed axle and two auxiliary drop axles – New 11R22.5 Tires – Aluminum wheels – ABS Sytem – Heavy duty pin lock and twist Locks – Easy one step locks and manual lock for extension – Haul one 40ft Container loaded or one 20ft container loaded

* 1 Year Warranty Included

2024 De Lucio USA 40/20 Extendable Chassis For Sale 2024 De Lucio USA 40-20 Extendable Chassis For Sale

20/40 FOOT Chassis

2024 De Lucio USA 40′-20′ Extendable Chassis For Sale 2024 De Lucio USA 40ft – 20ft Extendable Chassis For Sale

KEY BENEFITS

This chassis can carry one 20-foot or one 40-foot ISO container (loaded or empty)

FLEXIBLE

This chassis is available for long-term lease. Please contact sales@dcli.com for more information.

DCLL

Comes standard with new radial tires, auto tire inflation system, anti-lock braking system, and LED lights. You have the option to add GPS.

UPGRADED

This chassis can carry one 20-foot or one 40-foot ISO container (loaded or empty)

FLEXIBLE

This chassis is available for long-term lease. Please contact sales@dcli.com for more information.

DCLL

Comes standard with new radial tires, auto tire inflation system, anti-lock braking system, and LED lights. You have the option to add GPS.

UPGRADED

This chassis can carry one 20-foot or one 40-foot ISO container (loaded or empty)

FLEXIBLE

This chassis is available for long-term lease. Please contact sales@dcli.com for more information.

DCLL

Comes standard with new radial tires, auto tire inflation system, anti-lock braking system, and LED lights. You have the option to add GPS.

UPGRADED

Buy 2024 De Lucio USA 40/20 Extendable Chassis For Sale Buy 2024 De Lucio USA 40-20 Extendable Chassis For Sale Buy 2024 De Lucio USA 40′-20′ Extendable Chassis For Sale Buy 2024 De Lucio USA 40ft – 20ft Extendable Chassis For Sale

DETAILS

Please note: The below specifications and features are typical of DCLI’s fleet and not for any specific chassis. If you need exact specifications for a particular piece of equipment, please contact us.

Chassis Specifications 20’/40′ Combo Tandem Detailed Specifications

SPECIFICATIONS

OVERALL LENGTH

40’6″ (EXTENDED) 30’6″ (CLOSED)

OVERALL WIDTH

96″

FIFTH WHEEL HEIGHT

48″

REAR DECK HEIGHT

47 ½”

LANDING GEAR LOCATION

TWO-SPEED 17″ TRAVEL W/ LOW PRO SANDSHOE

KINGPIN LOCATION

30″ (FACE OF BOLSTER)

AXLE SPREAD

49″ (TANDEM)

GVWR

75,000 LBS.

MATERIAL

MAIN RAILS ARE OF HIGH STRENGTH LOW ALLOY STEEL; ALL OTHERS ARE OF ATSMA572 GRADE 50

CROSSMEMBER

FABRICATED CROSSMEMBERS

SUSPENSION

TANDEM AXLE 72″ SPACING / THREE LEAF SPRINGS

AXLES

71 ½” TRACK, 22,500 LBS. EACH RATED W/ PSI ATIS

ELECTRICAL

12-VOLT W/ MODULAR WIRING AND PLUG TYPE CONNECTORS
